Getting Orkot® to you, fast.

ANY SIZE. ANY QUANTITY. ANYWHERE.

Djons is official Orkot® Bearing supplier. This means you’ll get the real thing – Trelleborg Orkot® material.
As Orkot® experts we get anything done, regardless complexity or quantity. And if needed, we get it to you within 24 hours.

REQUEST A QUOTE

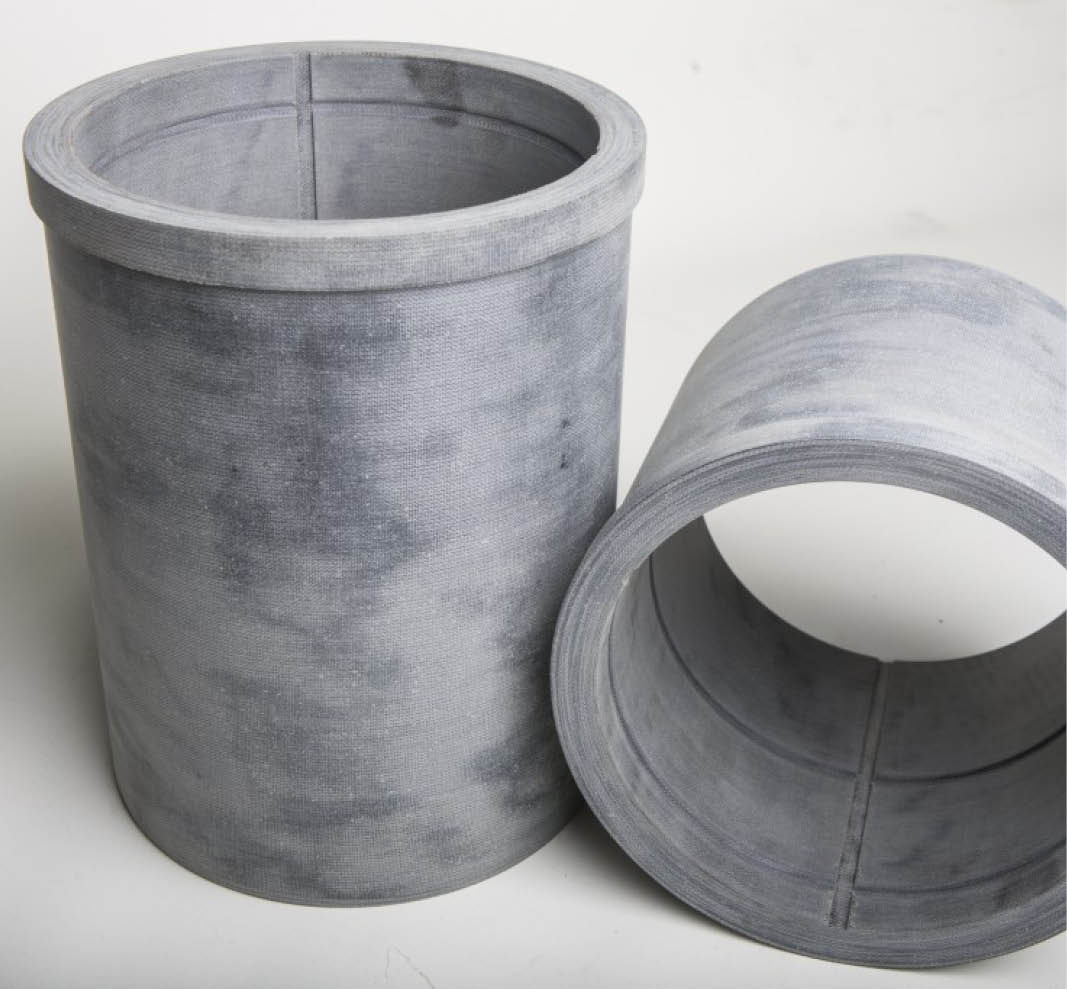

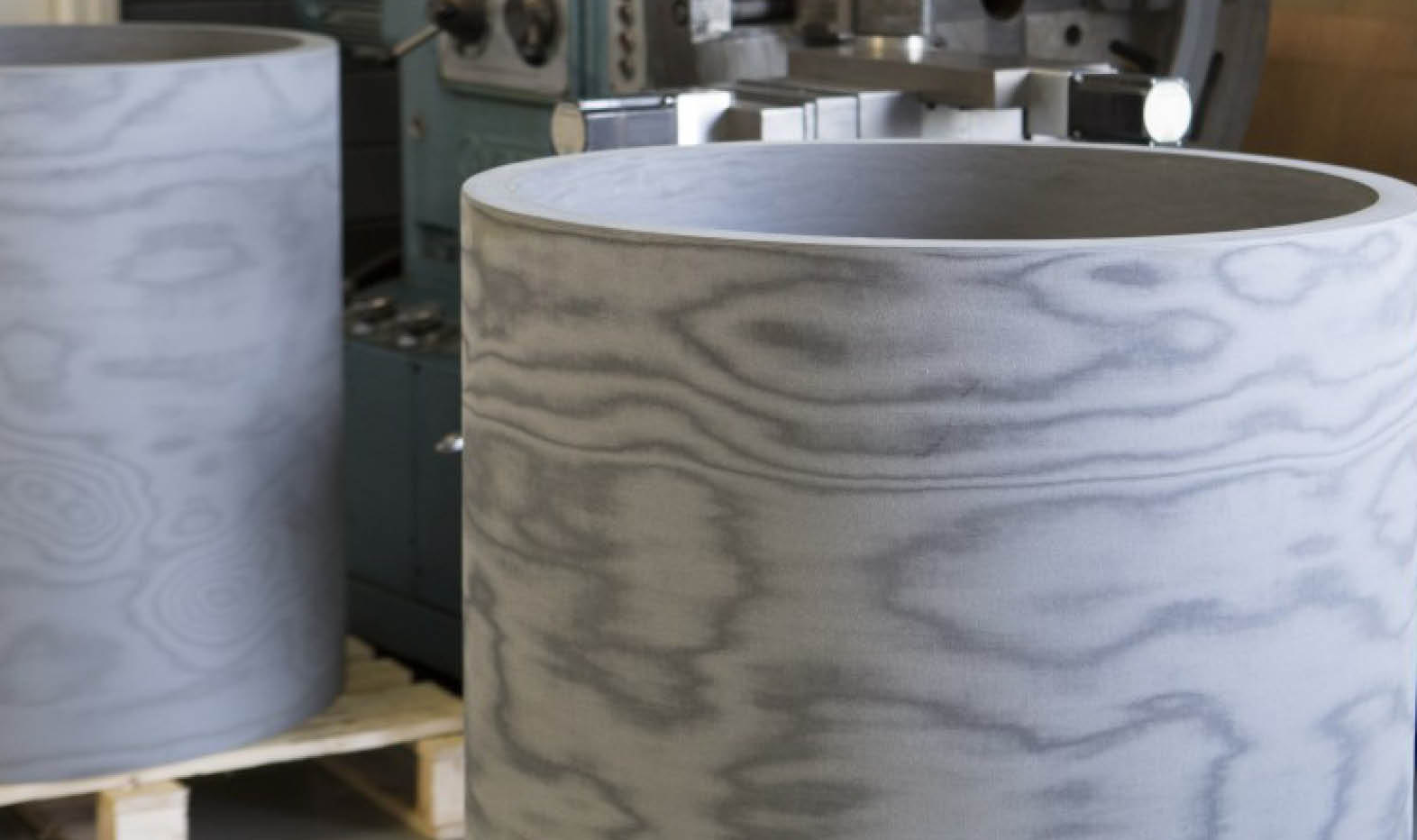

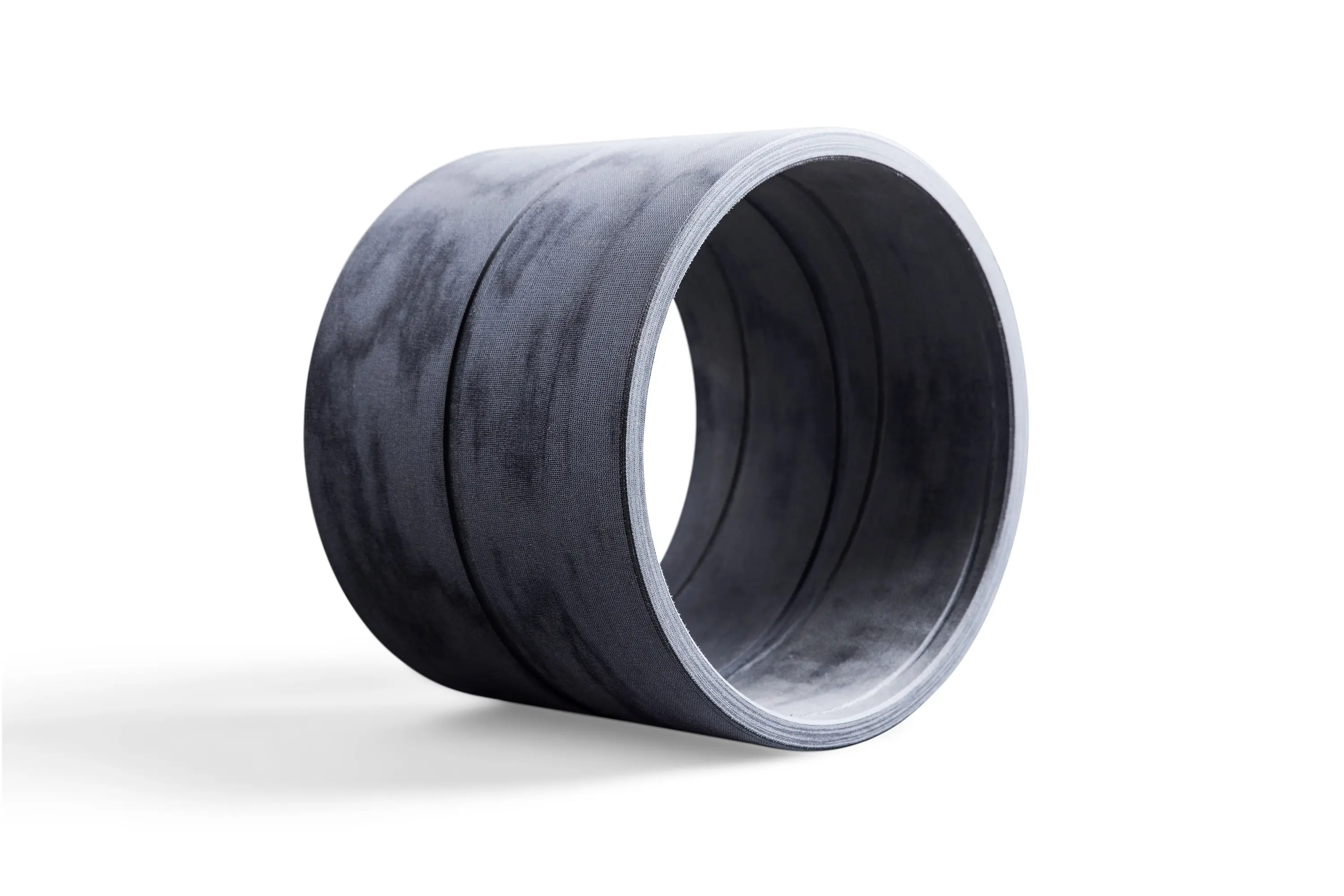

Orkot® Bearings

WORLD’S LEADING COMPOSITE BEARING

Orkot® is a high-grade polymer composite material containing solid lubricants. Compared to metal bearings Orkot® offers many advantages. They are maintenance-free and accept shaft misalignment and edge loads even under most demanding circumstances. Orkot® material is certified and therefor approved to be used in a variety of food and marine applications.

From Orkot® Djons manufactures plain bearings and spherical bearings that are highly wear-proof and have excellent dimensional accuracy.

ORKOT® FEATURES

  • Certified and approved to be used in Marine and Food industry

  • Low friction coefficient

  • Can be used in temperatures up to 200 degrees Celsius

  • No swell in salt or fresh water

  • Very useful in salt water applications

  • Adhesive bonding possible by using two-component adhesive

ADVANTAGES ORKOT®

  • Maintenance free, no lubrication required

  • Accepts shaft miss alignment

  • Friction coefficient is constant even after standstill

  • Absorbs vibration

  • Accepts long-term constant loads

  • Load capability is equal to steel plain metal bearings

APPLICATIONS

  • Replacement for bronze bearing bushes

  • Hinges for hatches, doors and bridges

  • Rudder and propeller shaft bearings

  • Bearings for pumps and valves

  • Rod and piston guiding for hydraulic and pneumatic cylinders

  • Skidding plates for heavy constructions such as weirs, bridges and flood gates

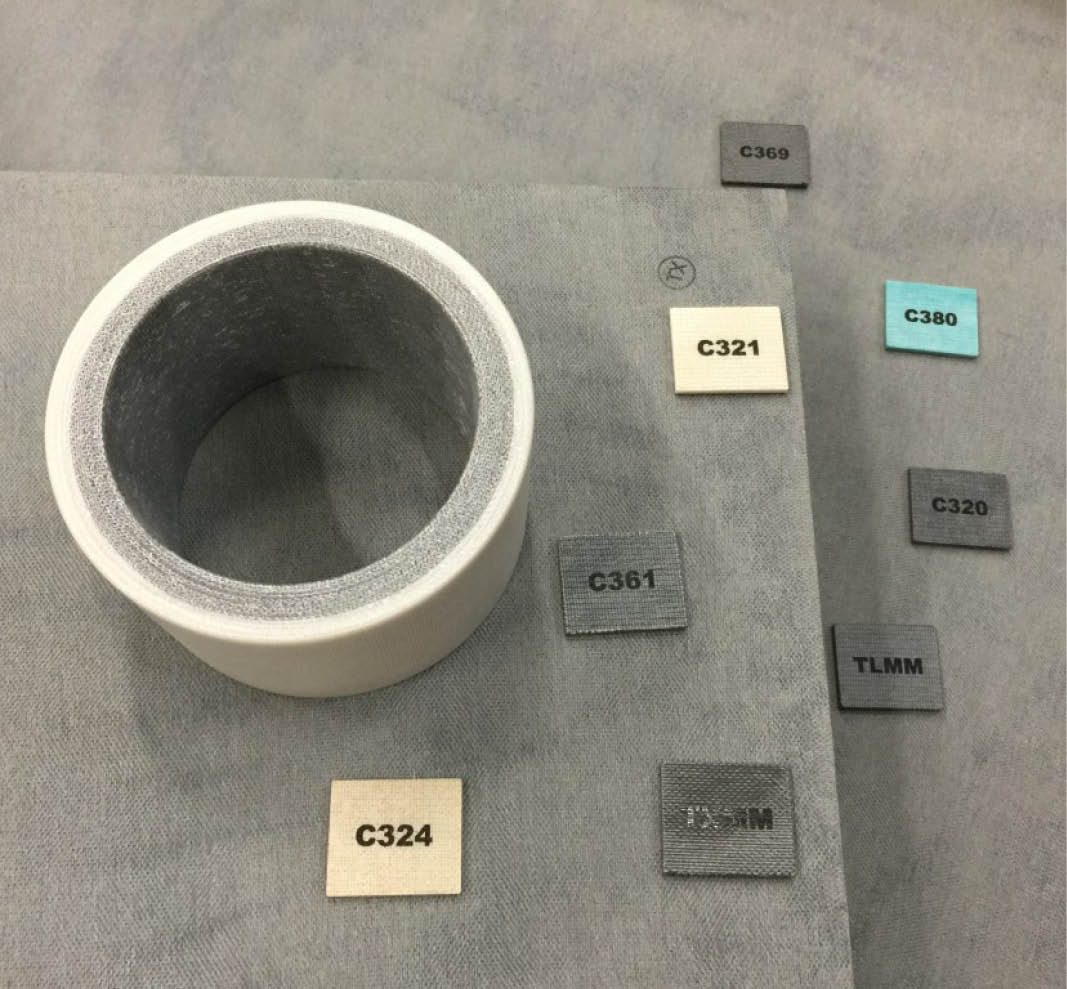

AVAILABLE ORKOT® GRADES

  • Orkot® TLM Marine

  • Orkot® TXM Marine

  • Orkot® C320

  • Orkot® C321

  • Orkot® C322

  • Orkot® C330

  • Orkot® C361

  • Orkot® C367

  • Orkot® C368

  • Orkot® C380 (Slydring/wear ring)

  • Orkot® C410

  • Orkot® C480 (Slydring/wear ring)

  • Orkot® C324

  • Orkot® C335

  • Orkot® C338

  • Orkot® C369

  • Orkot® C378

FOR ANY APPLICATION. IN THE MOST DEMANDING ENVIRONMENT.

REQUEST A QUOTE

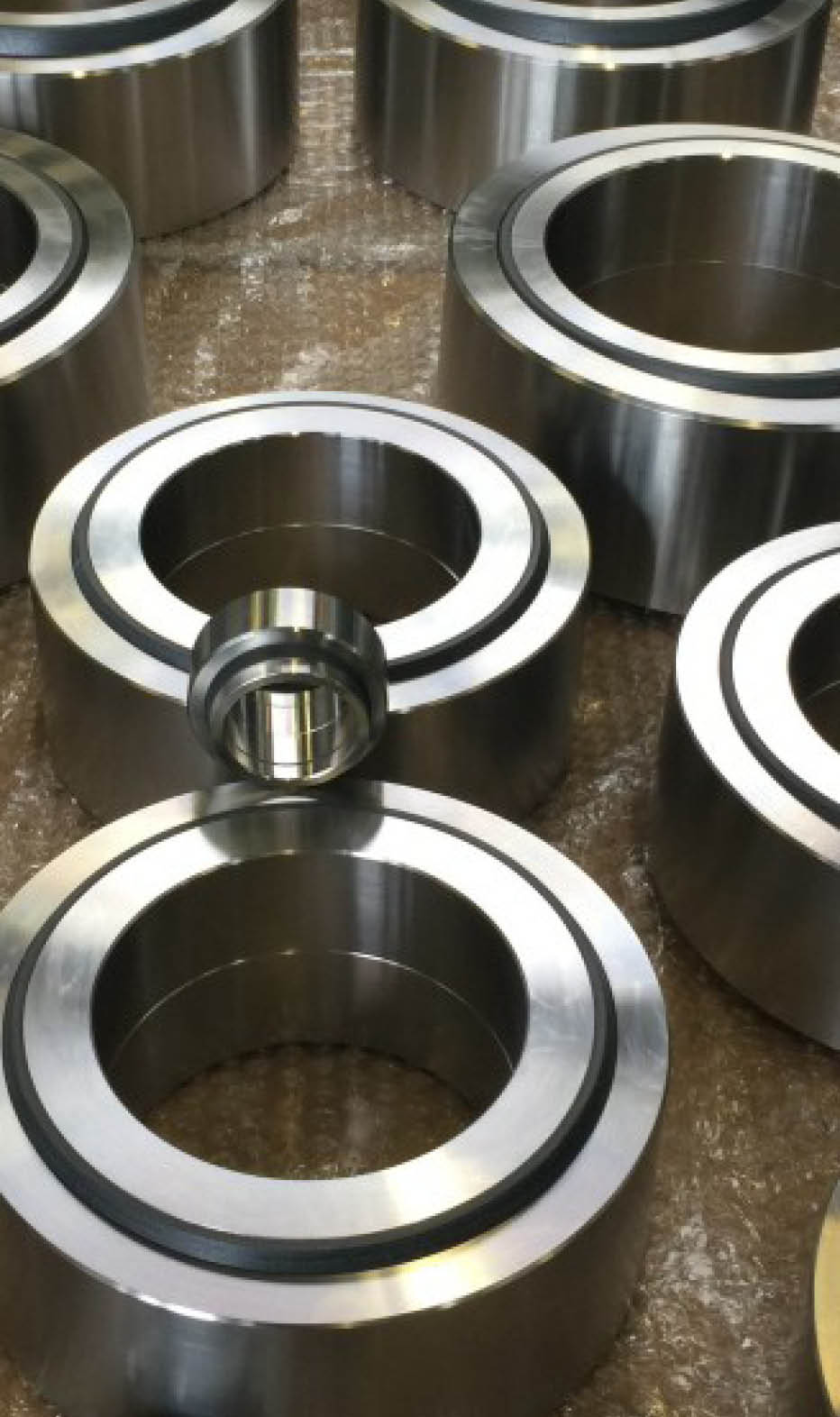

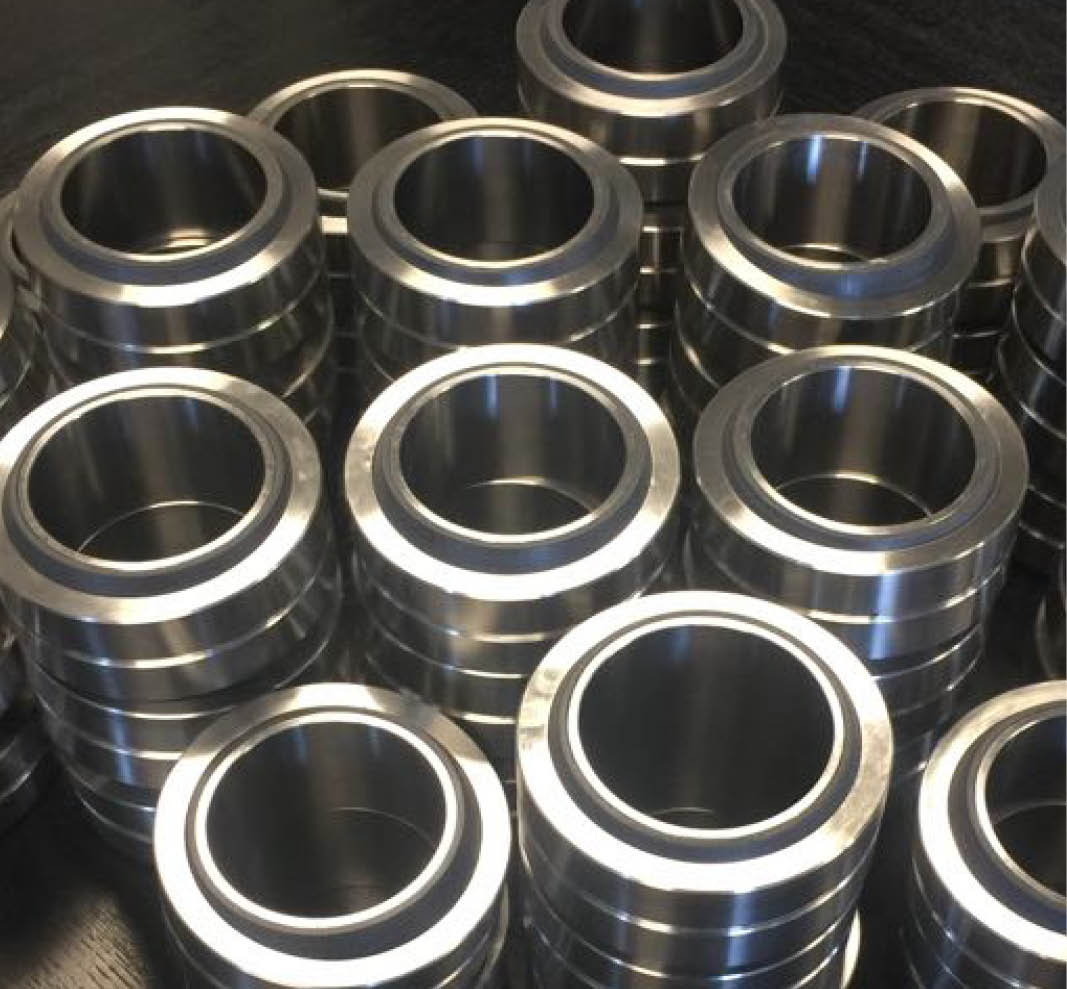

Orkot® Spherical Bearings

SERIES FOR ANY APPLICATION

Spherical bearings allow a bearing to operate with misalignment in the shaft. It permits both rotational movement as well as angular rotation.

Our spherical bearing parts are produced with Orkot®, making them maintenance free and suitable for dry and wet conditions. They are approved for both the food and marine industry.

Djons Spherical Bearings include five series that can be applied in almost any application.

FEATURES  SPHERICAL BEARINGS

  • Maintenance free, no lubrication required

  • Friction coefficient is constant even after standstill

  • Accommodates long-term constant loads

  • Load capability is comparable with metal spherical bearings

  • Can be used in temperatures up to 130°C

  • Useful in underwater applications

CHOOSING A SPHERICAL BEARING FOR YOUR APPLICATION

The type of spherical bearings required depends on the position of the shaft and the movement in the application. Ask yourself:

  • Is the tilt angle larger or smaller than 2°?
  • Is the movement rotational, swaying or both?

View Djons helpful Engineering Manual to help you select the correct spherical bearing for your application.

DOWNLOAD ENGINEERING MANUAL

ENGINEERING SERVICE

Djons has a team of highly skilled engineers who can help you to find the best solution for your application. We advise which type of bearing is suitable; we adapt them to suit specific conditions or we customise bearing solutions to accommodate your specific requirements.

CONTACT DJONS FOR ENGINEERING SERVICES
